L43


Sealing for hydraulics and pneumatics

Freudenberg

Specifications

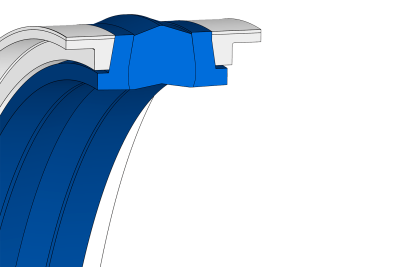

Compact double-acting piston seal composed of an NBR sealing ring, two TPE polyester elastomer anti-extrusion rings and two polyamide guide pieces that prevent the piston from contacting the cylinder liner. High resistance to extrusion due to pressure peaks.

Field of application


80 NBR B281 / 97 TPE 113TP / PA 6501
Speed: 0.5 m/s
Temperature range: -30 ºC to +100 °C
Pressure: 40 MPa
