506

- The Hallite 506 bearing strip is designed to provide an extremely efficient, wear resistant and easy to use bearing solution for reciprocating, oscillating and slow rotating applications. Manufactured to very tight tolerances, the Hallite 506 is able to withstand extreme side loads and prevent metal-to-metal contact between the piston and bore or rod and bushing. The Hallite 506 has become the industry standard favored by designers and specifiers alike in many of today's most arduous hydraulic applications around the world.
- Hallite 506 is available in three forms: cut bearing rings, spiral lengths and flat coils. Spiral lengths and flat coils are recommended for customers who wish to cut their own custom sizes. Spiral lengths are recommended for distributors or customers who need to accommodate a wide range of application sizes in a particular cross section.
- The Hallite 506 bearing strip is manufactured by a patented process using a fabric-reinforced polyester resin material and is proven to be compatible with a wide range of fluids including: mineral oils, water-based fluids and phosphate esters. The bearing strip construction incorporates micro-grooves in the surface to trap fluid and provide built-in lubrication to the bearing.

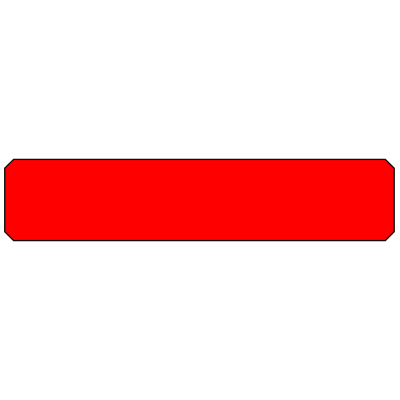

- Rectangular section strip is available in a wide range of inch and metric sizes, including the cross sections specified in ISO 10766.
