DK 109

Sealing for hydraulics and pneumatics

Epidor

Piston seals

Specifications

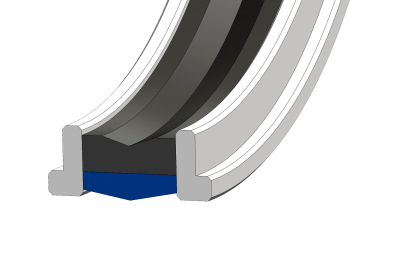

The DK 109 profile is a compact double-acting seal for heavy mobile hydraulics.
It consists of a sliding ring, confined by guides and energized by an elastomer profile. This part is suitable for applications where the piston remains stationary for long periods of time.
- The slip ring cannot be delivered.
- The slip ring cannot extrude.
- Good dynamic and static sealing.
The slip ring can be machined in various polyurethane formulations. See materials section.

Field of application

Speed ≤ 0.5 m/s
Temperature: according to material chosen
Pressure: up to 40 MPa (400 bar)
For 20 mm sleeves ≤ ØD ≤ 580 mm (other diameters on request)
