DK 109H

Sealing for hydraulics and pneumatics
Epidor

Specifications

The DK 109H profile is a double-acting seal for heavy mobile hydraulic services.

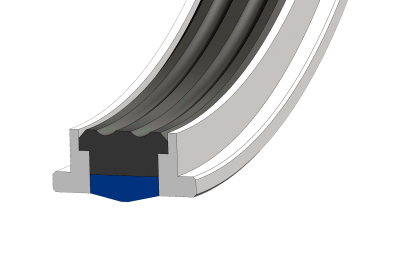

It consists of a sliding ring, confined by guides and energized by an elastomer profile. This part is suitable for applications where pressure shocks occur.
- The slip ring cannot twist on itself.
- The slip ring cannot extrude.
- Absorption of sudden pressure changes.
The slip ring can be machined in various polyurethane formulations. See materials section.

Field of application

Speed ≤ 0.4 m/s
Temperature: according to material chosen
Pressure up to 150 MPa (1,500 bar)
For 20 mm sleeves ≤ ØD ≤ 580 mm (other diameters on request)

See file
Standard cylinders
Hydraulic constructions
Crane on trucks
Light mobile hydraulics
Agricultural machinery
Injection molding machinery
Light mobile machinery
Heavy mobile machinery
Mining
Presses
