DK 110-112

Sealing for hydraulics and pneumatics

Epidor

Piston seals

Specifications

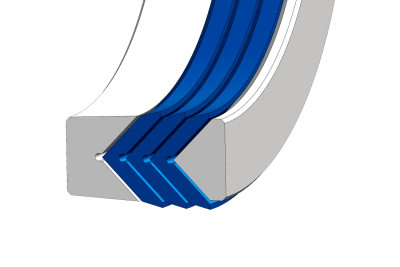

Model DK 110-112 is a packing consisting of a pressure ring or cover, intermediate rings and a base ring. It is often used as a spare part in hydraulic presses or large high load cylinders.
- Robust design for single and double acting cylinders .
- Spare part for old gaskets.
- Adaptability to surfaces in poor condition.
Intermediate rings can be machined in either polyurethane or elastomer. Cover and base rings are made of thermoplastic materials. See materials section.

Field of application

Speed ≤ 0.5 m/s
Temperature: according to material chosen
Pressure up to 40 MPa (400 bar)
For sleeves of 40 mm ≤ ØD ≤ 580 mm (other diameters on request)
