DK 123

Sealing for hydraulics and pneumatics
Epidor

Specifications

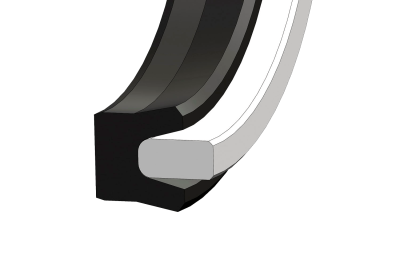

The DK 123 is a symmetrical joint; both the inner and outer lip edges have the same sealing tension.
The profile has a clamping ring that locks it in the housing. It can be used indistinctly on pistons or rods.
- Symmetrical joint.
- Clamping ring.
- Part for piston and/or piston rod.
Can be machined in polyurethane and elastomers. See materials section.

Field of application

Speed ≤ 0.7 m/s
Temperature: according to material chosen
Pressure: 40 MPa (400 bar)
For 15 mm sleeves ≤ ØD ≤ 580 mm (other diameters on request)

See file
Standard cylinders
Hydraulic constructions
Crane on trucks
Light mobile hydraulics
Agricultural machinery
Injection molding machinery
Light mobile machinery
Heavy mobile machinery
Mining
Presses
