DK 123N

Sealing for hydraulics and pneumatics

Epidor

Piston seals

Specifications

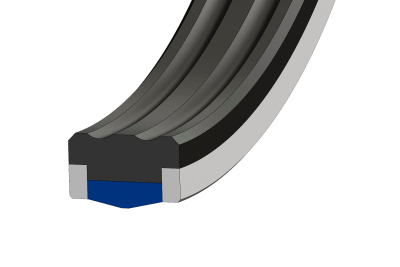

The DK 123N profile is a compact double-acting seal for heavy mobile hydraulic services.
It consists of a sliding ring, confined by support rings (DST 108) in the housing, which is energized with an elastomer profile. This part is suitable for applications where the piston remains stationary for long periods of time.
- The slip ring cannot twist on itself.
- The slip ring cannot extrude.
- Absorption of sudden pressure changes.
The slip ring can be machined in various polyurethane formulations. See materials section.

Field of application

Speed ≤ 0.5 m/s
Temperature: according to material chosen
Pressure: up to 40 MPa (400 bar)
For 20 mm sleeves ≤ ØD ≤ 580 mm (other diameters on request)
