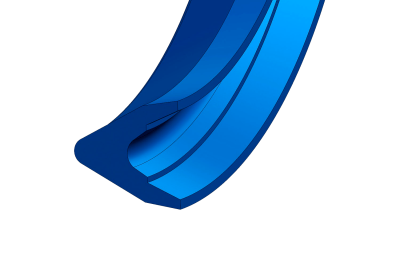

DK 124

Sealing for hydraulics and pneumatics

Epidor

Piston seals

Specifications

Model DK 124 is the replacement for intermediate rings of packing. Both the pressure ring or cover ring and the support ring or packing base must be adapted to the DK 124 profile, otherwise the complete packing must be manufactured.
- Robust design for single and double acting cylinders .
- Spare part for old gaskets.
- Adaptability to surfaces in poor condition.
The intermediate ring can be machined in either polyurethane or elastomer. See materials section.

Field of application

Speed ≤ 0.5 m/s
Temperature: according to material chosen
Pressure up to 40 MPa (400 bar)
For sleeves of 40 mm ≤ ØD ≤ 580 mm (other diameters on request)
