DK 125

Sealing for hydraulics and pneumatics

Epidor

Piston seals

Specifications

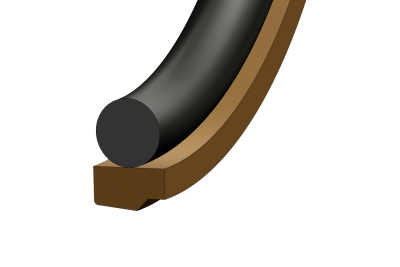

Model DK 125 is a low-friction seal for single-acting cylinders in medium and heavy hydraulic services for machine tools, injection molding machinery and positioning cylinders. It consists of a slip ring that is energized by an O-ring. The ring has such a low coefficient of friction that it eliminates the problem of stick-slip.
- High extrusion and wear resistance.
- Seal free of stick-slip effect.
- Absorption of pressure peaks.
The slip ring can be machined in polyurethane and various PTFE formulations. See materials section.

Field of application

Velocity ≤ 10 m/s (≤ 0.5 m/s for C-HPU)
Temperature: according to material chosen
Pressure: up to 60 MPa (600 bar)
For 10 mm sleeves ≤ ØD ≤ 580 mm (other diameters on request)
