DK 143

Sealing for hydraulics and pneumatics

Epidor

Piston seals

Specifications

Profile DK 143 is a low-friction seal for double-acting cylinders in medium and heavy hydraulics.

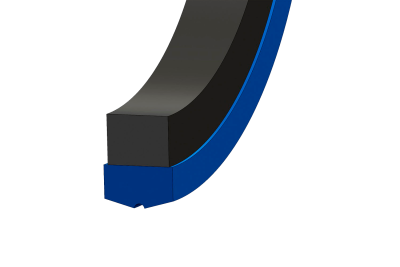

It consists of a triangular section slip ring energized by a DFL 102 seal (rectangular section) with greater interference and stability in the groove than an O-ring.
- The rectangular section joint cannot twist on itself.
- Good dynamic and static sealing.
- Standardized housings according to ISO 7425.
The slip ring is machined in polyurethane and the DFL 102 seal in low remanent deformation elastomer. See materials section.

Field of application

Speed ≤ 0.5 m/s
Temperature: according to material chosen
Pressure: up to 40 MPa (400 bar)
For housings of 17.5 mm ≤ ØD ≤ 580 mm (other diameters on request)
