DK 144

Sealing for hydraulics and pneumatics

Epidor

Piston seals

Specifications

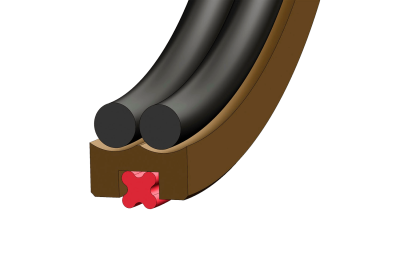

Model DK 144 is a double-acting low-friction seal for positioning cylinders and pressure accumulators. It consists of an energized sliding ring with two O-rings (DFL 106) and, in addition, an X-ring (DFL 111) for dynamic sealing against pressure peaks. The slip ring has such a low coefficient of friction that it eliminates the problem of stick-slip.
- Profile recommended for the separation of two different fluids.
- Excellent housing stability.
- Part free of Stick-slip effect.
The slip ring can be machined in polyurethane and various PTFE formulations. See materials section.

Field of application

Velocity ≤ 3 m/s (≤ 0.5 m/s for C-HPU)
Temperature: according to material chosen
Pressure: up to 60 MPa (600 bar)
For housings of 25 mm ≤ ØD ≤ 580 mm (other diameters on request)
