DK 151

Sealing for hydraulics and pneumatics

Epidor

Piston seals

Specifications

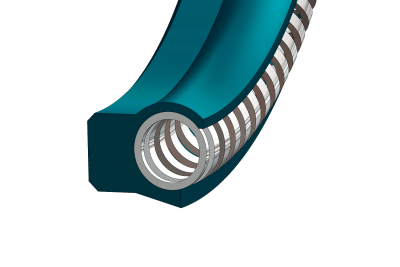

The DK 151 model is a single-acting seal, energized by a helical spring that provides greater sealing tension than U or V springs, thus improving sealing against liquids and gases.
The part is designed with an extended heel for improved extrusion behavior. The beveled working lip has a scraping and cleaning effect in abrasive or viscous media.
- Superior sealing, both in gases and liquids.
- Working lip with cleaning edge.
- Greater resistance to extrusion.
It can be machined in different formulations of PTFE with additives, Virgin PTFE and even in UHMW-PE for cryogenics. See materials section.

Field of application

Speed ≤ 15 m/s
Temperature: -200 ºC to +260 ºC (PTFE)
Temperature: -200 ºC to +80 ºC (UHMW-PE)
Pressure ≤ 45 MPa (450 bar)
For 10 mm sleeves ≤ ØD ≤ 580 mm (other diameters on request)
