DK 216

Sealing for hydraulics and pneumatics

Epidor

Piston seals

Specifications

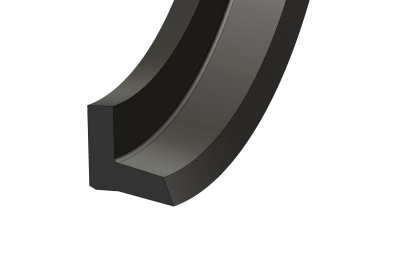

DK 216 is a single lip seal. It is suitable for use in both pneumatic and low pressure hydraulic cylinders.
One of its applications is as a piston seal in reciprocating pumps. It is recommended as a replacement part but not for new cylinder designs. In case of a new design, please consult the Technical Department.
- Single lip.
- Low pressure pneumatic and hydraulic cylinders.
- Spare part.
They can be machined in polyurethanes and elastomers. See section on materials.

Field of application

Speed: 0.5 m/s
Temperature: according to material chosen
Operating pressure for pneumatics: 1 MPa (10 bar)
Operating pressure for hydraulics: 16 MPa (160 bar)
For 10 mm sleeves ≤ ØD ≤ 580 mm (other diameters on request)
