DK 222

Sealing for hydraulics and pneumatics
Epidor

Specifications

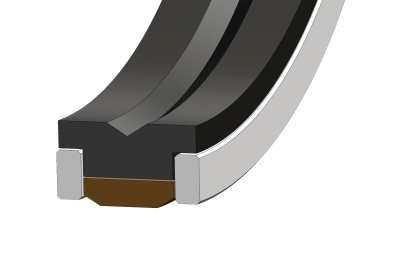

The DK 222 profile is a compact double-acting seal for heavy mobile hydraulic services.
It consists of a slip ring, confined by support rings (DST 111) in the housing, which is energized with an elastomer profile.
- The slip ring cannot be delivered.
- The slip ring cannot extrude.
- Compact design.
The slip ring can be machined in various polyurethane formulations. See materials section.

Field of application

Speed ≤ 1.0 m/s
Temperature: according to material chosen
Pressure: up to 40 MPa (400 bar)
For 20 mm sleeves ≤ ØD ≤ 580 mm (other diameters on request)

See file
Standard cylinders
Hydraulic constructions
Crane on trucks
Light mobile hydraulics
Agricultural machinery
Injection molding machinery
Light mobile machinery
Heavy mobile machinery
Mining
Presses
