DK 223

Sealing for hydraulics and pneumatics

Epidor

Piston seals

Specifications

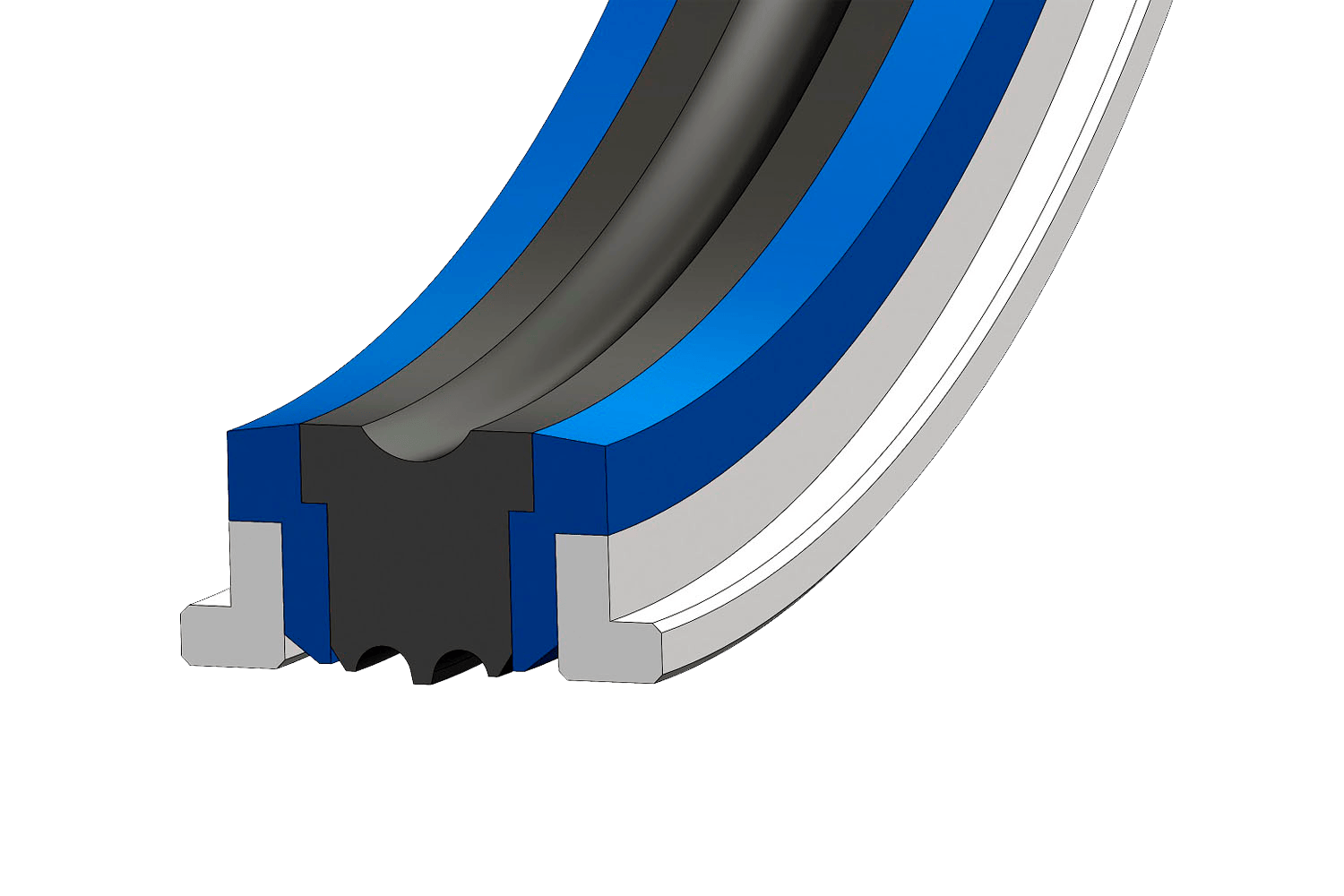

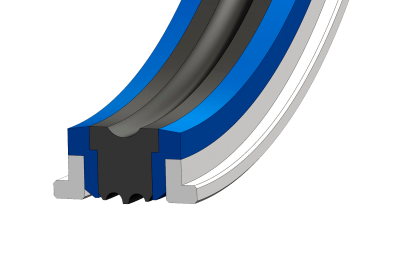

The DK 223 profile is a double-acting seal for heavy mobile hydraulic services.

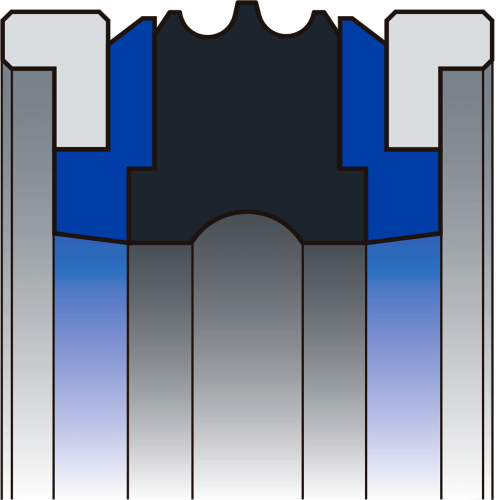

It is made up of a sliding ring, confined by support rings and guides. The relief of the friction ring allows its lubrication, increasing the life of the part.
- The slip ring cannot twist on itself.
- The slip ring cannot extrude.
- Improved friction ring lubrication.
The slip ring can be machined in various elastomer formulations and also in polyurethane. See materials section.

Field of application

Speed ≤ 0.5 m/s
Temperature: according to material chosen
Pressure up to 40 MPa (400 bar)
For 20 mm bearings ≤ ØD ≤ 580 mm (other diameters on request)
