DK 238

Sealing for hydraulics and pneumatics

Epidor

Piston seals

Specifications

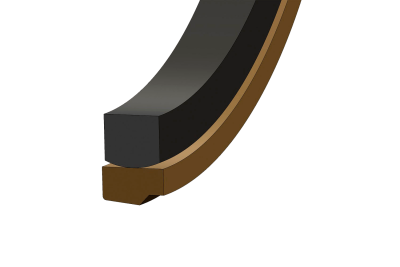

The DK 238 profile is a low-friction seal for single-acting cylinders in medium and heavy hydraulics. It consists of a slip ring that is energized with a DFL 109E seal, which has greater interference and stability in the groove than an O-ring. The ring has such a low coefficient of friction that it eliminates the problem of stick-slip.
- Excellent performance at high speeds.
- Compact design that requires little space.
- Part free of Stick-slip effect.
The slip ring can be machined in polyurethane and various PTFE formulations. See materials section.

Field of application

Velocity ≤ 10 m/s (≤ 0.5 m/s for C-HPU)
Temperature: according to material chosen
Pressure: up to 60 MPa (600 bar)
For 15 mm sleeves ≤ ØD ≤ 580 mm (other diameters on request)
