DK 318


Sealing for hydraulics and pneumatics

Epidor

Specifications

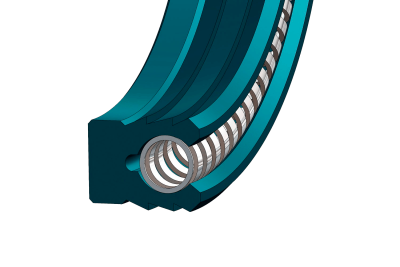

The DK 318 is a single-acting, spring-energized seal with three sealing edges.
Profile recommended for sealing gases or low viscosity liquids, both in pneumatic and hydraulic services.
- Greater sealing capacity thanks to its three edges.
- Suitable for working with gases or low viscosity liquids.
- Low friction coefficient.
It is manufactured in virgin PTFE or with different fillers. See materials section.

Field of application


Speed ≤ 1.0 m/s
Temperature: -200 ºC ... +260 ºC
Pressure for pneumatics up to 2 MPa (20 bar)
Pressure for hydraulics up to 40 MPa (400 bar)
For 15 mm sleeves ≤ ØD ≤ 580 mm (other diameters on request)
