606

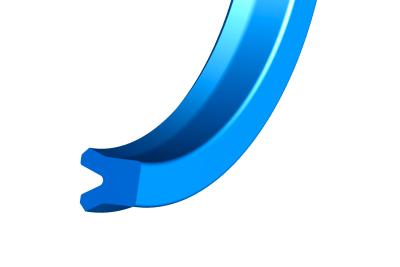

- The Hallite 606 single lip, single acting, asymmetrical piston seal is designed with precision trimmed sealing lips to provide effective bore sealing in light to medium duty applications. The seal may be considered for use in heavy-duty applications when used with a suitable full-depth back-up ring. The sealing lips are trimmed at an angle to provide optimum stem sealing performance.
- The range covers most of the standard housings used in Europe, North America and Asia.
- The Hallite 606 is designed to have an interference fit in the seal housing groove. The outer dynamic lip is shorter and more robust for improved sealing and compression characteristics compared to conventional symmetrical U-rings.
- The seal is recommended for use in single acting piston seal applications. It can also be installed back-to-back in separate grooves for use in double acting applications.
- Hallite 606 is molded in Hythane® 181, Hallite's high-performance polyurethane, for easy installation and excellent low-temperature performance.
