DS 130 / DK 126

Sealing for hydraulics and pneumatics

Epidor

Static seals

Specifications

This model is a compact seal recommended for high pressure static applications.
As it is a symmetrical part, it can seal both on the inside diameter (DS 130 gasket) and on the outside diameter (DK 126 gasket).

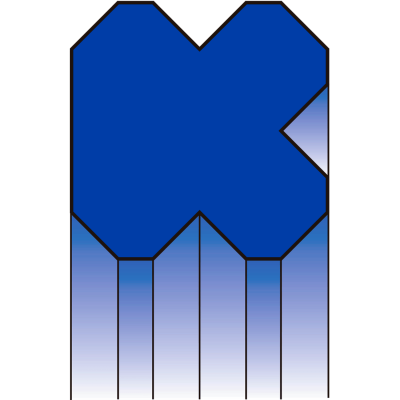

Dimensionally, the joint has a square cross-section and can be replaced by the DFL 111 X-profile joint or by a compact profile, depending on the application.
- For static and dynamic (very low speed) applications.
- Seal suitable for pneumatics.
- Can be replaced by an X-joint.
It is usually machined in polyurethane formulations. See materials section.

Field of application

Speed ≤ 0.1 m/s. Since the velocity is so low, it is preferable to use this profile only for static services.
Temperature: according to material chosen
Pressure: up to 40 MPa (400 bar)
For housings of 10 mm ≤ Ø ≤ 580 mm (other diameters, please consult us)
