DS 105

Sealing for hydraulics and pneumatics

Epidor

Stem seals

Specifications

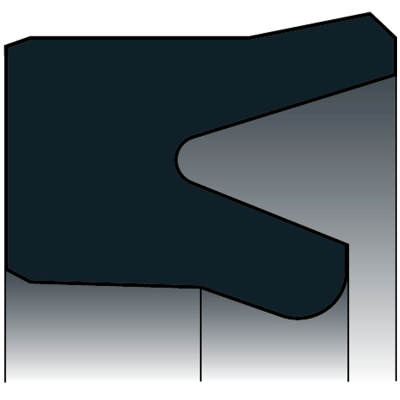

Model DS 105 is a U-lip seal with asymmetrical profile for single-acting service on pneumatic cylinder rods. This profile is also suitable for low pressure hydraulic cylinders.
The sealing lip has a rounded edge facilitating the passage of the oil film and, therefore, the lubrication of the lip.
- Wide range of sizes.
- Ease of assembly.
- Reliable and economical solution.
This part can be machined in low hardness polyurethane suitable for pneumatics and in elastomers. See materials section.

Field of application

Speed: ≤ 0.5 m/s
Temperature: according to material chosen
Operating pressure (Pneumatic) ≤ 2.0 MPa (20 bar)
Operating pressure (Hydraulic) ≤ 16 MPa (160 bar)
For 10 mm shanks ≤ Ød ≤ 580 mm (for other diameters, please consult us)
