DS 106

Sealing for hydraulics and pneumatics

Epidor

Stem seals

Specifications

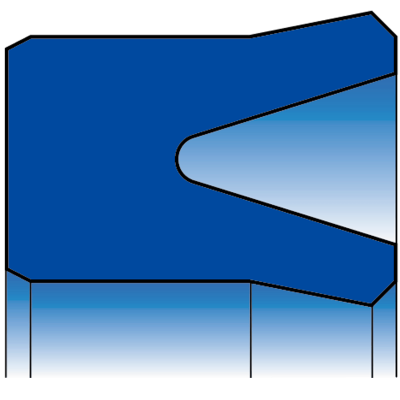

The DS 106 is a symmetrical joint. Both the inner and outer lip edges have the same sealing tension. It can be used either on piston rods or pistons.
- Profile suitable for pneumatics.
- Wide range of sizes.
- Easy to install.
Part recommended for single-acting cylinders and can be mounted on double-acting cylinders using a back-to-back configuration in separate housings.
It can be machined in both polyurethane and elastomers. See materials section.

Field of application

Speed ≤ 0.5 m/s
Temperature: according to material chosen
Operating pressure (Pneumatic) ≤ 2.0 MPa (20 bar)
Operating pressure (Hydraulic) ≤ 40 MPa (400 bar)
For housings of 10 mm ≤ Ød ≤ 580 mm (other diameters on request)
