DS 108S

Sealing for hydraulics and pneumatics

Epidor

Stem seals

Specifications

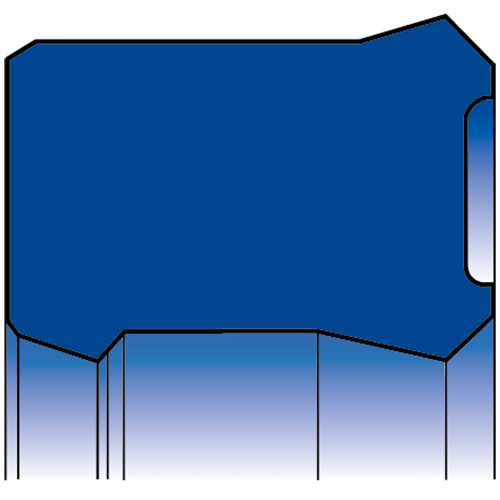

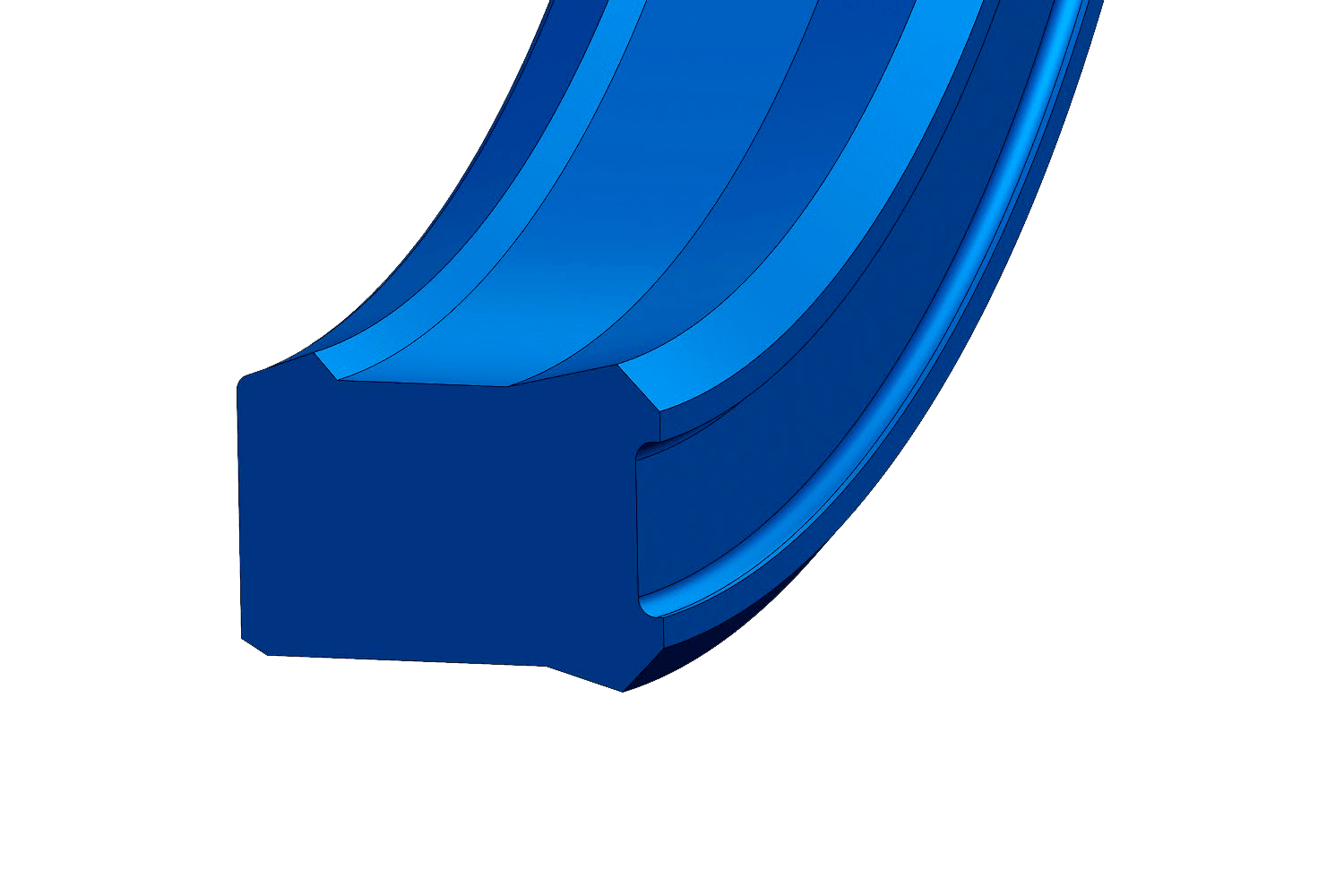

The DS 108S profile is a compact, asymmetrically profiled rod seal that can be manufactured in very narrow profiles, suitable for telescopic cylinders and mobile hydraulics.
It has a bead that gives stability to the profile and serves as an additional barrier to external impurities. The sealing lips are machined at an angle to provide optimum stem sealing performance.
- Design resistant to bending fatigue.
- Good sealing at low pressures.
- Wide range of sizes.
It can be machined in polyurethane and elastomer. See materials section.

Field of application

Speed < 0.5 m/s Temperature: depending on the selected material Pressure: up to 60 MPa (600 bar) For sleeves of 10 mm ≤ Ø ≤ 580 mm (other diameters on request)
