SD 124

Sealing for hydraulics and pneumatics

Epidor

Stem seals

Specifications

Model DS 124 is a double-acting, low-friction seal for positioning cylinders.

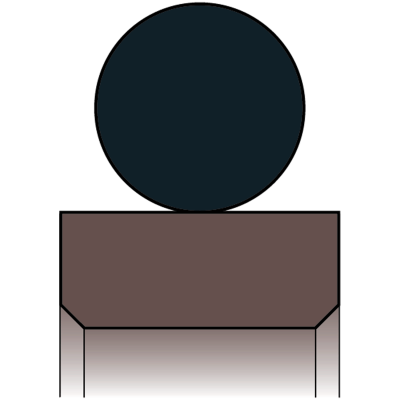

It consists of a slip ring that is energized by an elastomer O-ring. The ring has such a low coefficient of friction that it eliminates the stick-slip effect.
- Compact design that requires little space.
- Excellent performance at high speeds.
- High resistance to wear and extrusion.
The slip ring can be machined in various PTFE formulations and also in polyurethane. See materials section.

Field of application

Velocity: ≤ 10 m/s (≤ 0.5 m/s for C-HPU)
Temperature: according to material chosen
Pressure up to 60 MPa (600 bar)
For 10 mm shanks ≤ Ød ≤ 580 mm (for other diameters, please consult us)
