DS 125

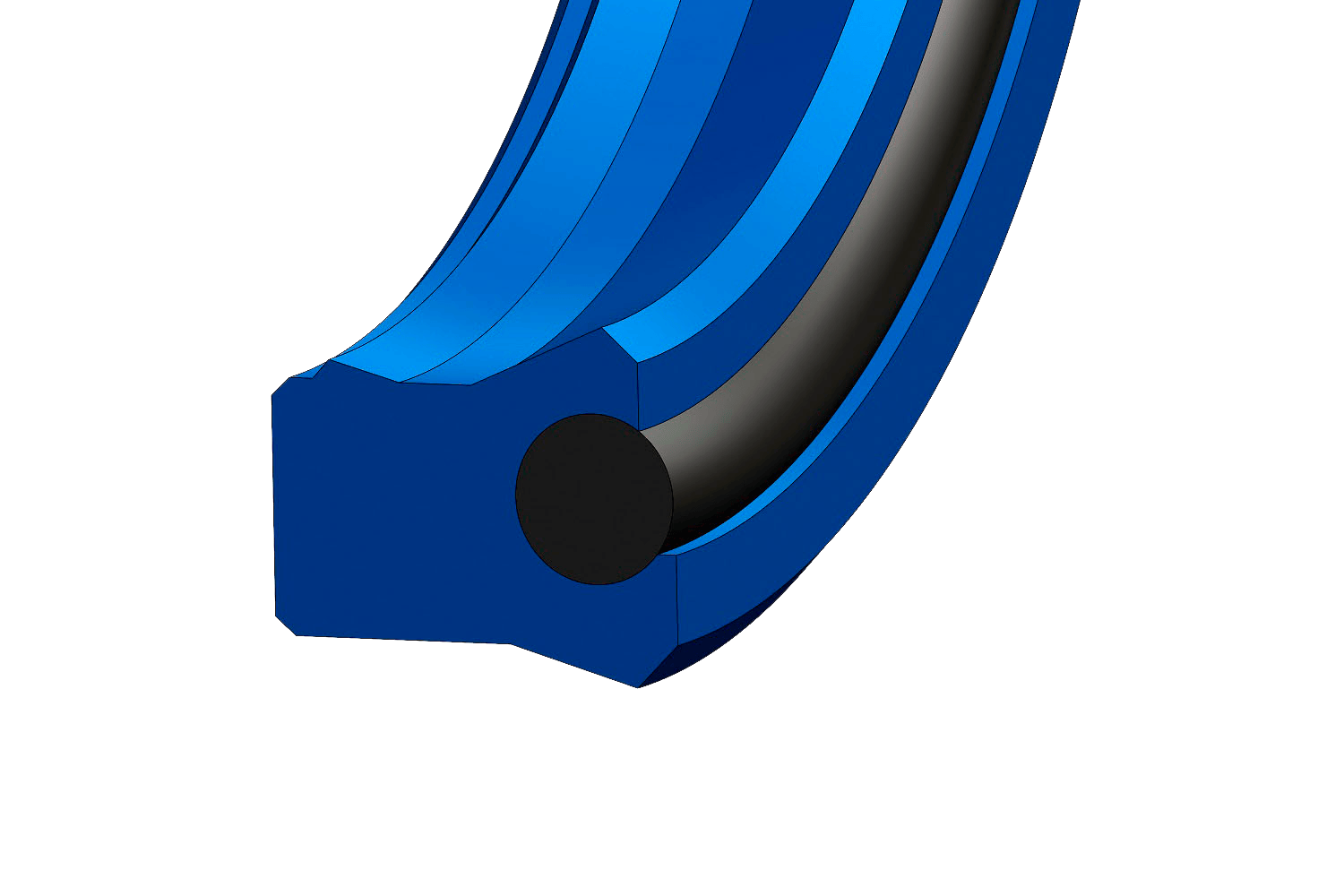

Model DS 125 is a compact single-acting seal for medium and high pressure hydraulic cylinders.

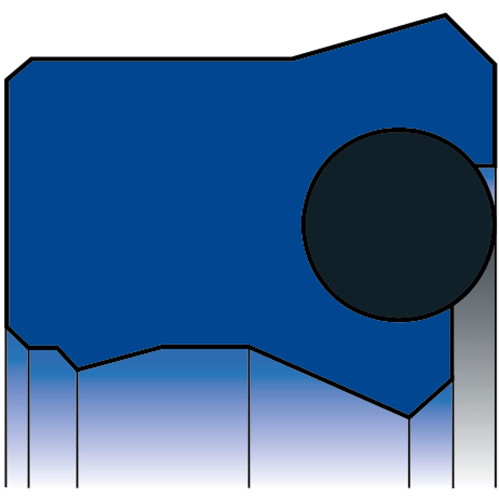

The profile incorporates an O-ring that exerts uniform tension on the working lip sealing the stem, even when there is no pressure in the medium, while increasing resistance to pressure peaks.
The bead has a sealing edge that prevents dirt from entering the system, making this profile suitable for agricultural machinery cylinders, among other applications.
- Heel edge with scraper effect.
- Sealed even without pressure in the middle.
- Absorption of pressure peaks.
This profile can be machined in polyurethane and elastomer. See section on materials.
