JV 128


Sealing for hydraulics and pneumatics

Epidor

Specifications

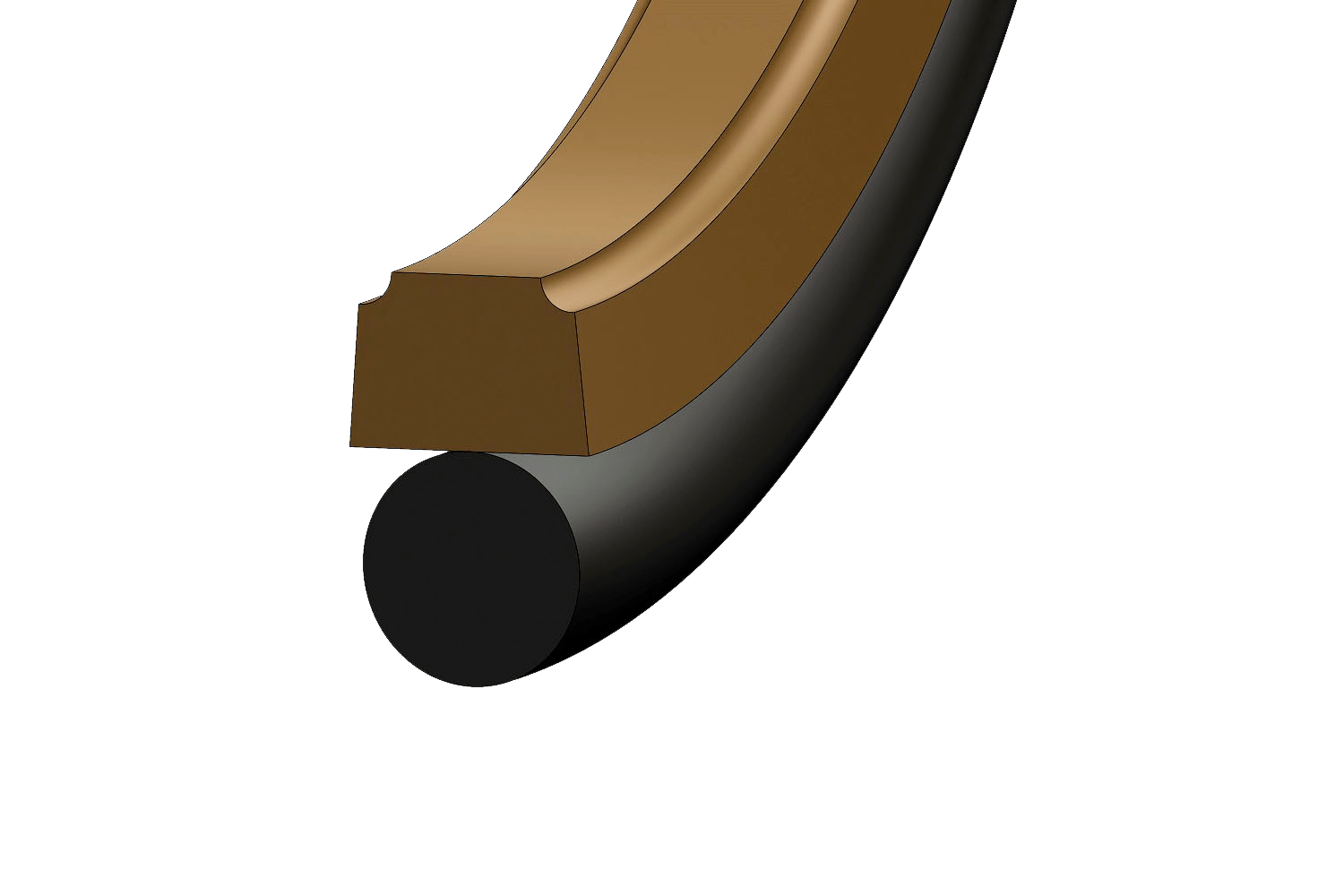

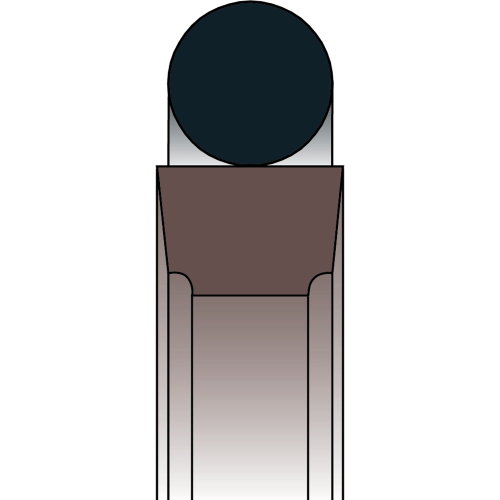

The JV 128 profile is a double-acting low-friction seal for positioning cylinders. It consists of an energized slip ring with an O-ring. The ring has such a low coefficient of friction that it eliminates the problem of stick-slip. The JV 128 profile is designed to fit in standard low-friction seal housings.
- Seal free of stick-slip effect.
- Double-acting sealing.
- Compatible with existing low friction seal housings.
The slip ring can be machined in polyurethane and in various PTFE formulations with fillers. See materials section.

Field of application


Speed < 5 m/s Temperature: depending on material chosen Pressure: up to 60 MPa (600 bar) For 15 mm sleeves ≤ Ø ≤ 580 mm (other diameters on request)
