JV 242


Sealing for hydraulics and pneumatics

Epidor

Specifications

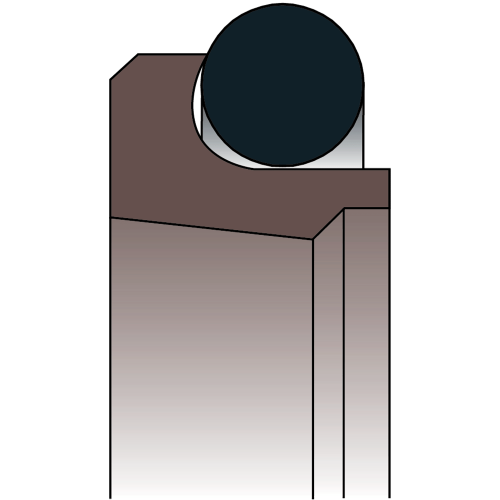

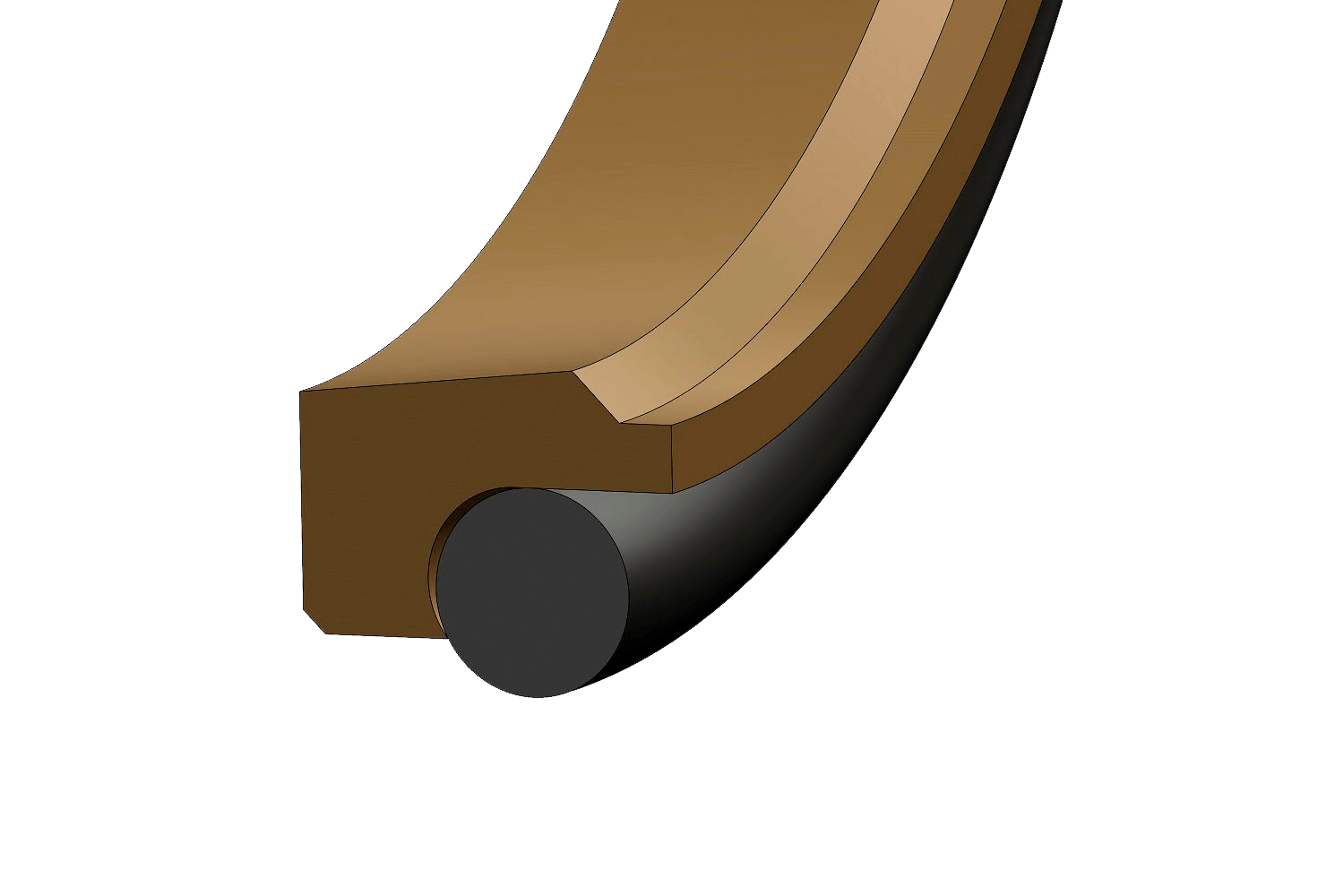

The JV 242 profile is a low-friction seal for single-acting cylinders. It consists of an energized slip ring with an O-ring. The ring has such a low coefficient of friction that it eliminates the problem of stick-slip. The JV 242 profile is designed to fit in standard O-ring housings.
- Seal free of stick-slip effect.
- Self-adjusting to stem movement.
- Compatible with O-ring housings.
The slip ring can be machined in polyurethane and in various PTFE formulations with fillers. See materials section.

Field of application


Speed ≤ 5 m/s
Temperature: according to material chosen
Pressure: up to 40 MPa (400 bar)
For sleeves of 10 mm ≤ Ø ≤ 580 mm (other diameters on request)
