NIPSL


Sealing for hydraulics and pneumatics

Freudenberg

Specifications

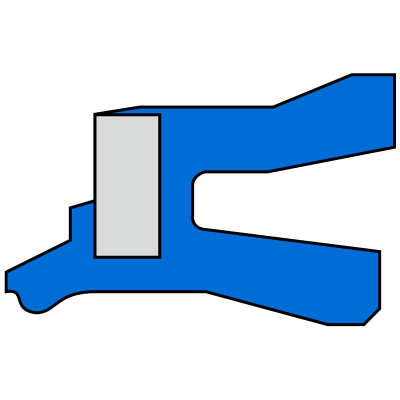

Combined seal-scraper element, without metal housing and with lips designed for pneumatics, which maintain a lubricating film on the piston rod. Part replaceable from the outside, without the need to open the pneumatic cylinder head. NIPSL is secured in the housing with a rectangular section ring.

Field of application


72 NBR 708
Speed: ≤ 1 m/s
Temperature range: -20 ºC to +100 °C
Pressure: ≤ 1.2 m/s MPa

On request, 75 FPM 595
Speed: ≤ 1 m/s
Temperature range: -5 ºC to +150 °C
Pressure: ≤ 1.2 m/s MPa
