RCG


Sealing for hydraulics and pneumatics

Hallite

Specifications

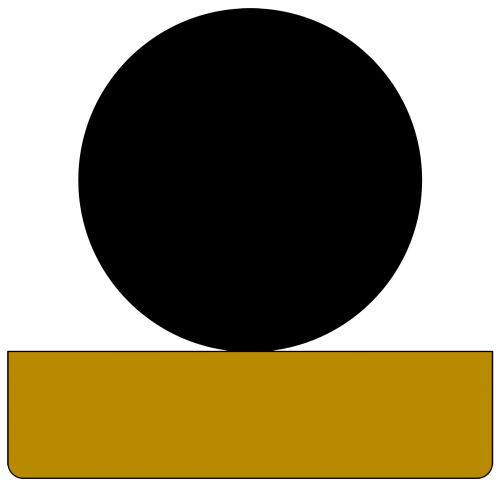

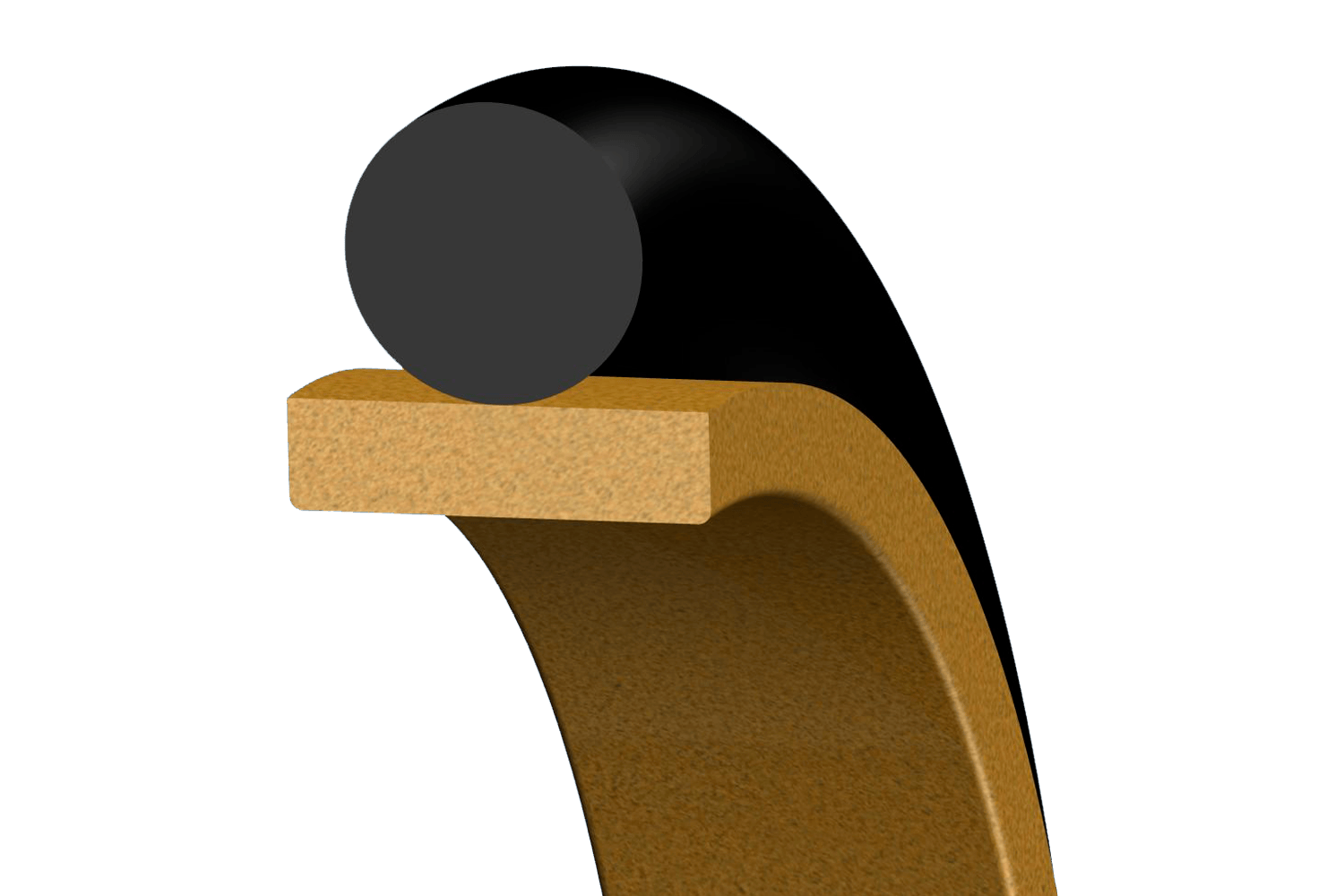

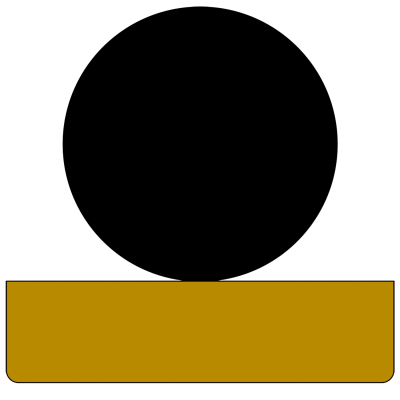

- The Hallite RCG is a low-friction, O-ring energized, double-acting rod seal designed for low to medium pressure systems. High-performance Armorlene® materials, such as HLX, provide excellent wear and extrusion resistance properties, as well as wide temperature range and media compatibility.
- The compact design of the RCG provides an ideal sealing solution where housing space is limited. This seal is available in a variety of Hallite's high performance Armorlene® materials to suit a wide range of demanding applications.

Field of application


Maximum speed: Up to 15.0 m/s
Temperature range: -45 to +200 °C
Maximum dynamic pressure: 200 bar
