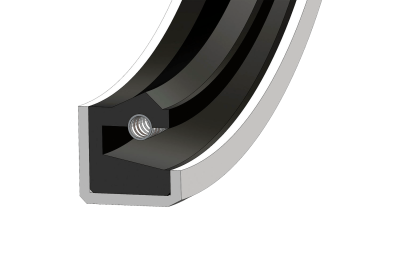

DR 201


Sealing for rotating equipment

Epidor

Specifications

Part DR 201 is a type B seal according to DIN 3760 / 3761 for grease or oil sealing in rotating equipment.
The outer casing allows for interference fit assembly in open pockets.
The advantage of the DR 201 seal is that it can be machined to non-standard dimensions if required, and in a wide range of elastomers.

Field of application


Temperature: according to the chosen material.
Pressure up to 0.5 bar.
Peripheral speed up to 10 m/s.
For shafts and rods from Ø 20 up to Ø 500 mm
(other diameters on request).
