DR 103


Sealing for rotating equipment

Epidor

Specifications

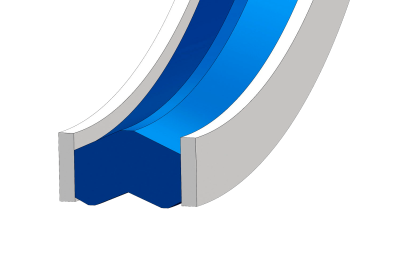

The DR 103 rotary joint is used as an auxiliary sealing element in rotating shafts, preventing the entry of contaminants into the equipment.
It consists of an elastomer ring with a support ring on each side. If it is not used as an auxiliary seal, then it is suggested that it be replaced by part DR 115.
- Auxiliary gasket that prevents the entry of dust and water splashes.
- Reinforced profile with support rings.
- Simple installation.
Wide range of materials.

Field of application


Peripheral speed: 0.5 m/s.
Pressure: -
For shafts from Ø 20 to Ø 400 mm
(other diameters on request).
