DR 112


Sealing for rotating equipment

Epidor

Specifications

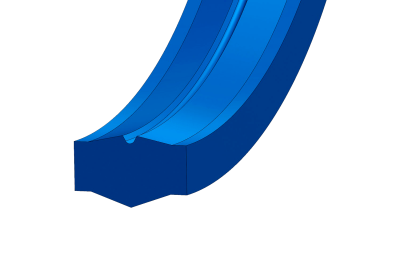

The DR 112 model is a sealing gasket used as an auxiliary element in the sealing of rotating shafts, suitable for low-frequency oscillating movements, which prevents contaminants from entering the equipment.
If it is not used as an auxiliary seal, then it is suggested that it be replaced by part DR 115. The DR 112 seal operates at atmospheric pressure and has a lubrication channel in the contact area.
- Auxiliary gasket that prevents the entry of dust.
- Oscillatory motion.
- Simple installation.
Wide range of materials.

Field of application


Peripheral speed: 0.3 m/s.
Pressure: 200 bars
For shafts from Ø 20 to Ø 400 mm
(other diameters on request).
