Air CPA Slim


Sealing for hydraulics and pneumatics

Epidor

Specifications

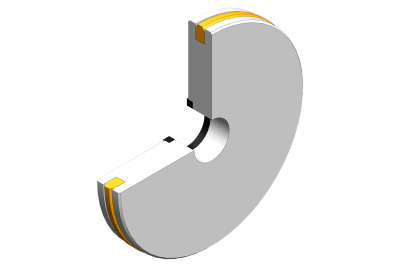

Complete piston with POM or Polyamide body and double acting seal included.
Due to its compact design, this complete double-acting piston is recommended for confined spaces.
- Static sealing gasket with stem.
- Body material with guiding capability.
- Quick and easy attachment to the stem.

Field of application


Speed ≤ 1 m/s
Temperature: according to table of materials
Pressure: up to 1 MPa (10 bar)
For sleeves of 16 mm ≤ Ø ≤ 100 mm (other diameters on request)
