GP2


Sealing for hydraulics and pneumatics

Hallite

Specifications

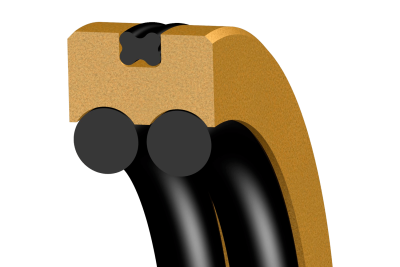

- The Hallite GP2 is a double-acting piston seal utilizing Hallite's patented high performance Armorlene® HLX PTFE combined with premium quality twin O-ring energizers and an X-ring for optimum performance and durability. The Armorlene® PTFE sealing ring and X-ring together provide the dynamic sealing function, while the O-ring energizers provide the static sealing.
- Hallite GP2 seals are especially effective in applications where it is necessary to separate two different types of media, such as in piston accumulators, intensifiers and position-holding applications. This makes this seal a good choice for applications in stabilizers, accumulators, man lifts, industrial machinery and hydraulic suspension. The GP2 is ideal for larger diameter heavy duty systems.

Field of application


Maximum speed: Up to 3.0 m/s
Temperature range*: -45 to +200 °C
Maximum dynamic pressure**: 600 bar

*Depends on the energizer used (NBR, FKM, etc.).
**For pressures above 300 bar (4350 psi), contact Hallite Engineering.
