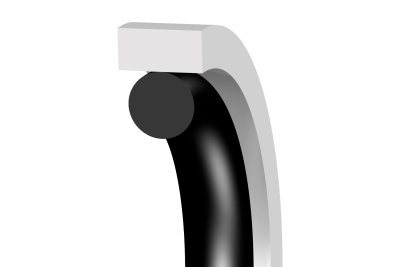

Hallite G54 is a low-friction, O-ring energized, double-acting piston seal that works well in both high and low pressure systems. Its design has square cut edges and is often preferred in high performance glass-filled Armorlene® materials, such as HQ6 or 701, to provide excellent wear and extrusion resistance properties, as well as wide temperature range and media compatibility. G54 has a proven design pedigree as a high performance seal used in demanding applications.
- Successfully used for years in challenging applications in construction equipment, machine tools, material handling, agricultural equipment and other industries, the Hallite G54 is a proven dual-acting compact piston seal solution. This seal is available to fit a variety of housing sizes, including ISO 7425-1 grooves. Hallite recommends using a suitable guide with this seal in heavy-duty applications (see Hallite Bearings section).
- This seal is available in a variety of Hallite's high performance Armorlene® materials to suit a wide range of demanding applications.
- Maximum speed: Up to 4.0 m/s
- Temperature range*: -45 to +200 °C
- Maximum dynamic pressure**: 400 bar
*Depends on the energizer used (NBR, FKM, etc.).
**For pressures above 300 bar (4350 psi), contact Hallite Engineering.
