DR 116
Sealing for Hydraulic and Pneumatic Systems, Sealing for Rotating Equipment
Epidor
Field of application
Linear velocity: 2.0 m/s.
Pressure: 300 bars
For shafts from Ø 20 to Ø 500 mm
(other diameters on request).

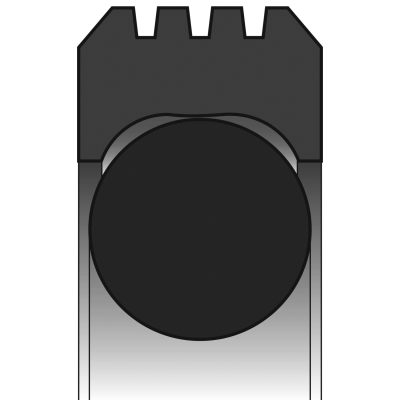

Model DR 116 is a low-friction, double-acting seal for pistons in rotary or oscillating applications.
It consists of a grooved sliding ring energized by an elastomer O-ring. Excellent performance at high speeds.
- Compact design that requires little space.
- Resistance to wear and extrusion.
- Oscillatory motion
The slip ring can be machined in various PTFE formulations and also in polyurethane.
Linear velocity: 2.0 m/s.
Pressure: 300 bars
For shafts from Ø 20 to Ø 500 mm
(other diameters on request).
